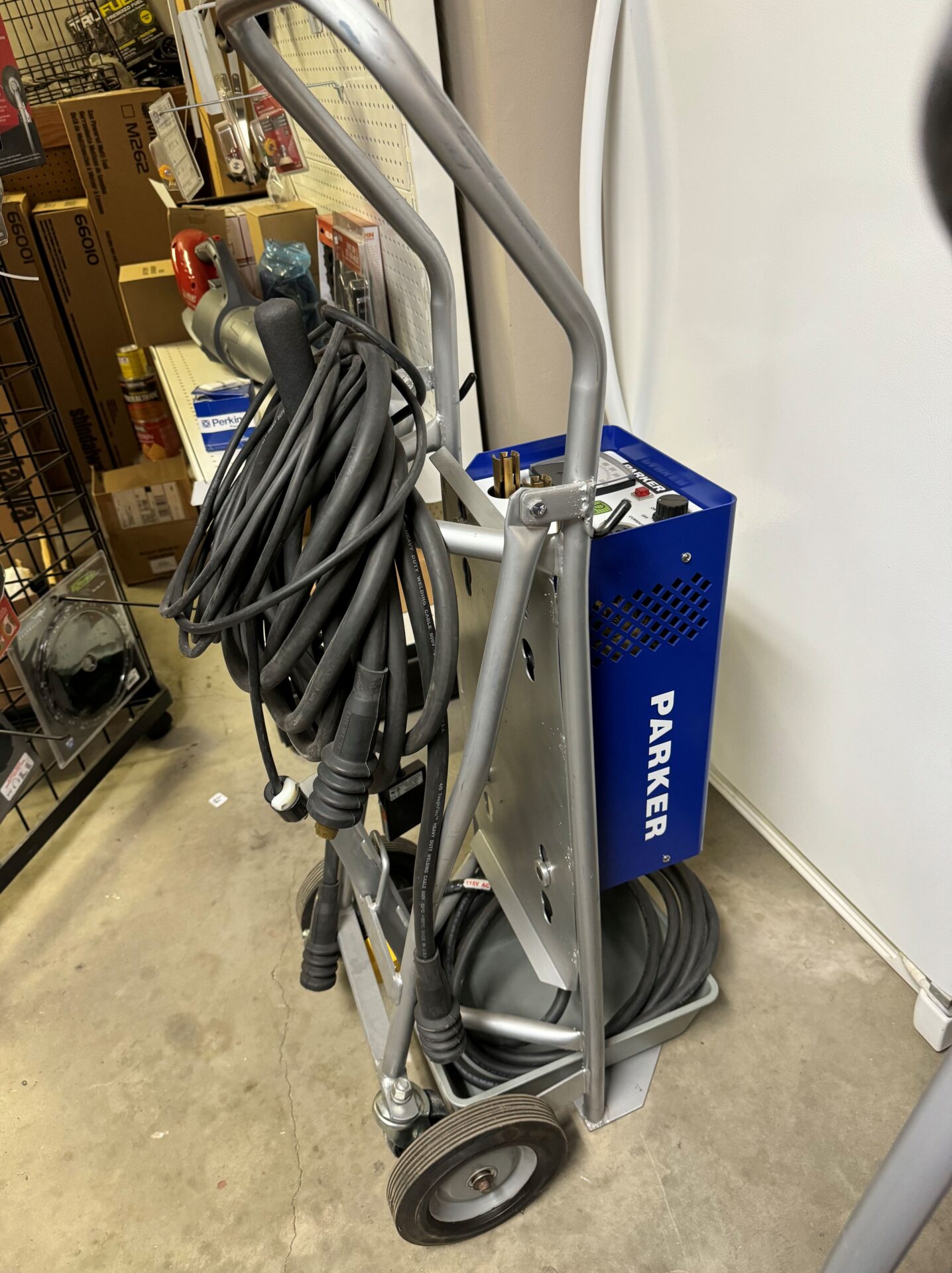

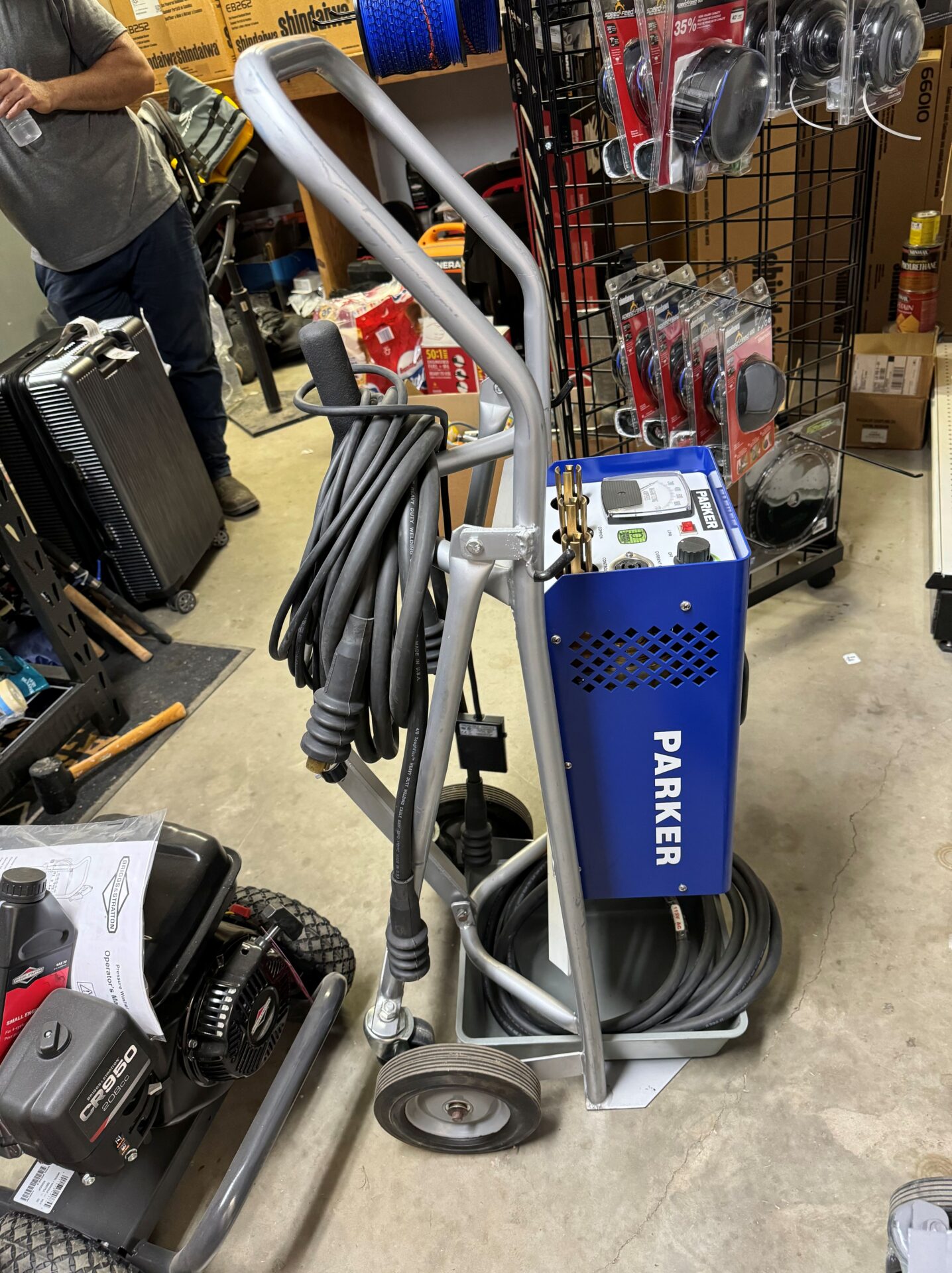

Portable Magnetic Inspection Units
The DA-Series portable power packs are convenient and economical inspection units that are used in a wide range of magnetic particle applications that require only moderate power.
They are ideal for large or heavy parts, in-service mobile equipment, or job-site welds.
Advantages & Features.

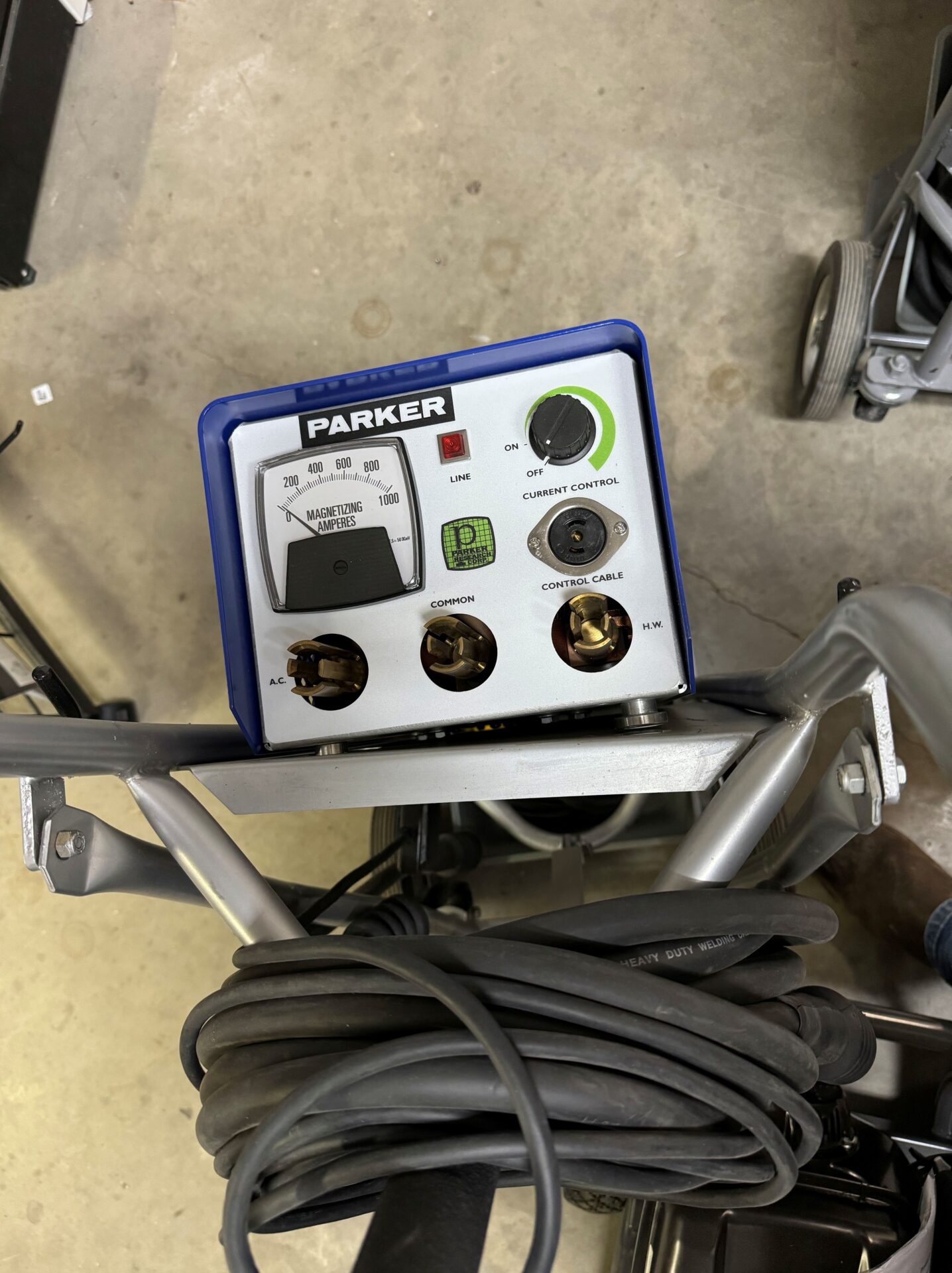

• Selection of AC current or HWDC current by only changing one cable connection.
• Locate defects in any direction using Prods, coil wrap or contact clamps.
• Infinitely variable current control.
• Demagnetize your parts in AC by turning the current dial to zero or by passing parts through a coil and slowly
withdrawing them while the current is on.
Specifications:
| DA750 | |
| Dimensions | 18” x 9.25” x 8” 45.7 x 23.5 x 20.3 cm |
| Weight | 43 lbs. (19.5 kg) |
| Max Output1 | 750 Amps AC or HWDC |
| Cord Length | 20 ft. (6 m) |
| Duty Cycle | 10% |
| Electrical Requirements2 | 27 A @ 115 VAC 50/60 Hz |
| 1Current ratings based on use of two 15-foot lengths of 4/0 cable (30 feet total) 2Single phase power supply | |
Accessories and Cables for Start-Up
• 20’ Remote Hand Switch Assembly (PN: MA7RC) or
20’ Remote Foot Switch Assembly (PN: MA7FC)
• 15’ 4/O Cable Set w/Lug & Either Ends (PN: MC1540) or
15’ 4/O Cable Set w/Either Ends (PN: MC1541)
• Individual Prod Set (PN: MA7000)
• Dual Horizontal Prod Assembly (PN: MA7001)
• Braided Contact Clamp (PN: MA7003)
• Transport Cart (PN: TR700)
