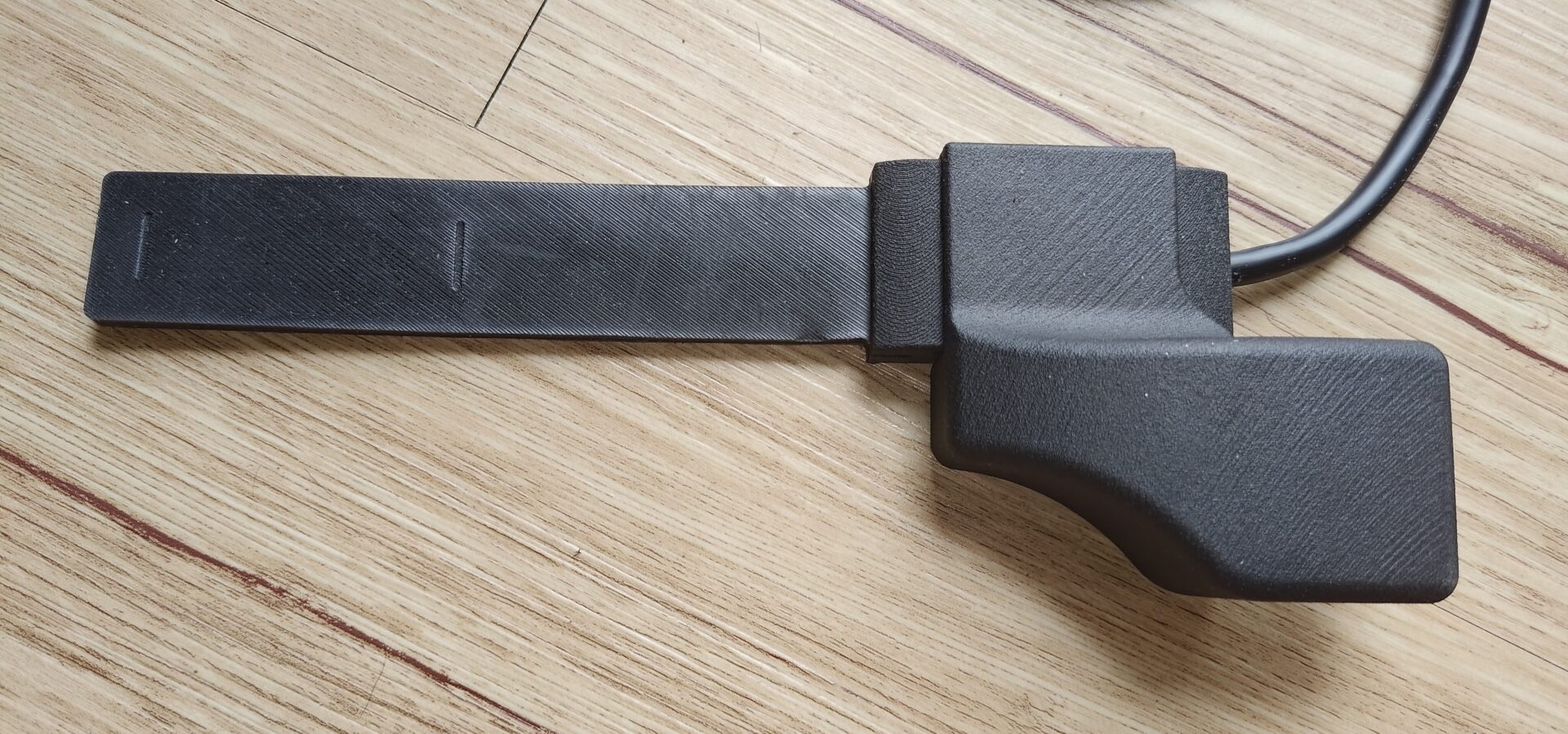

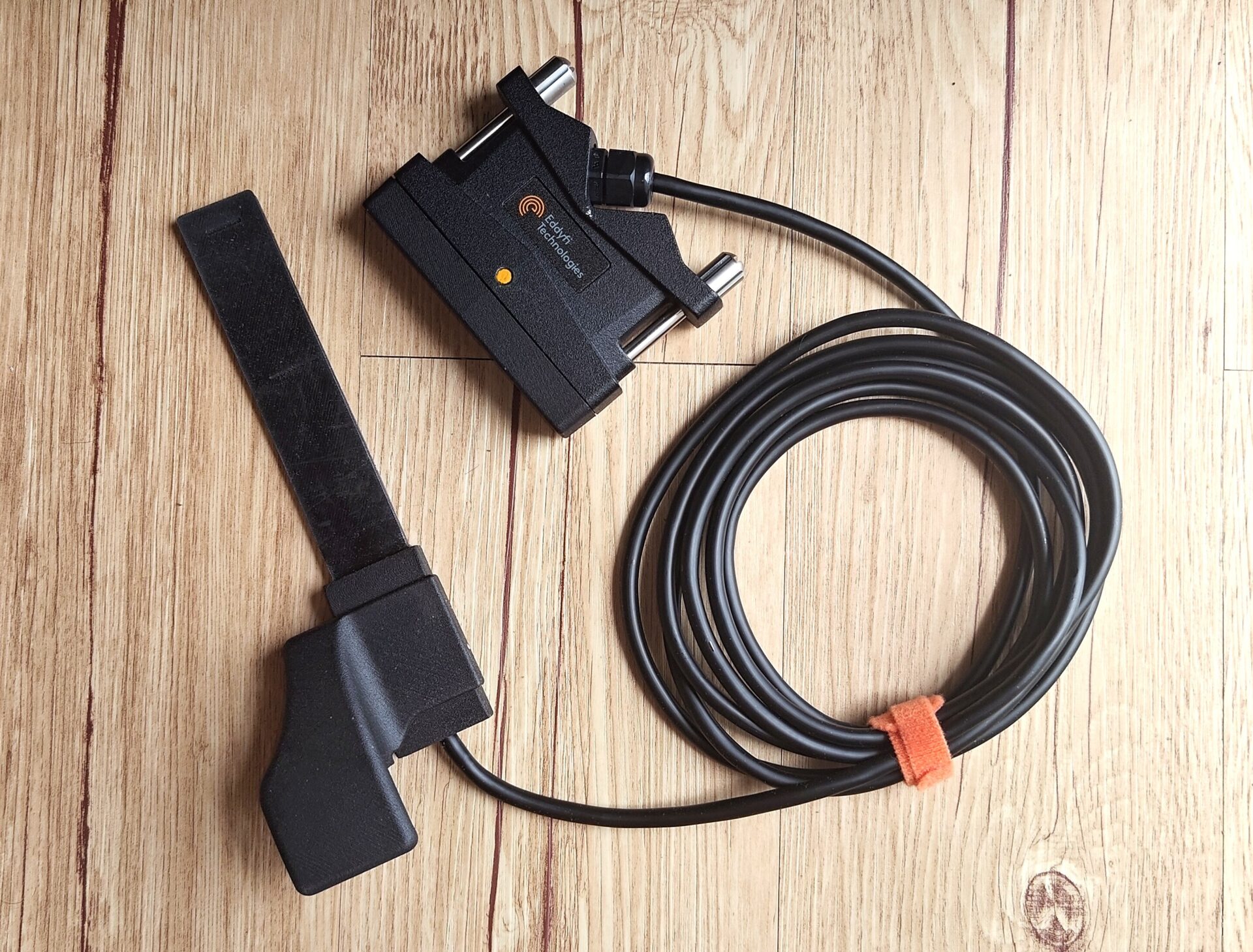

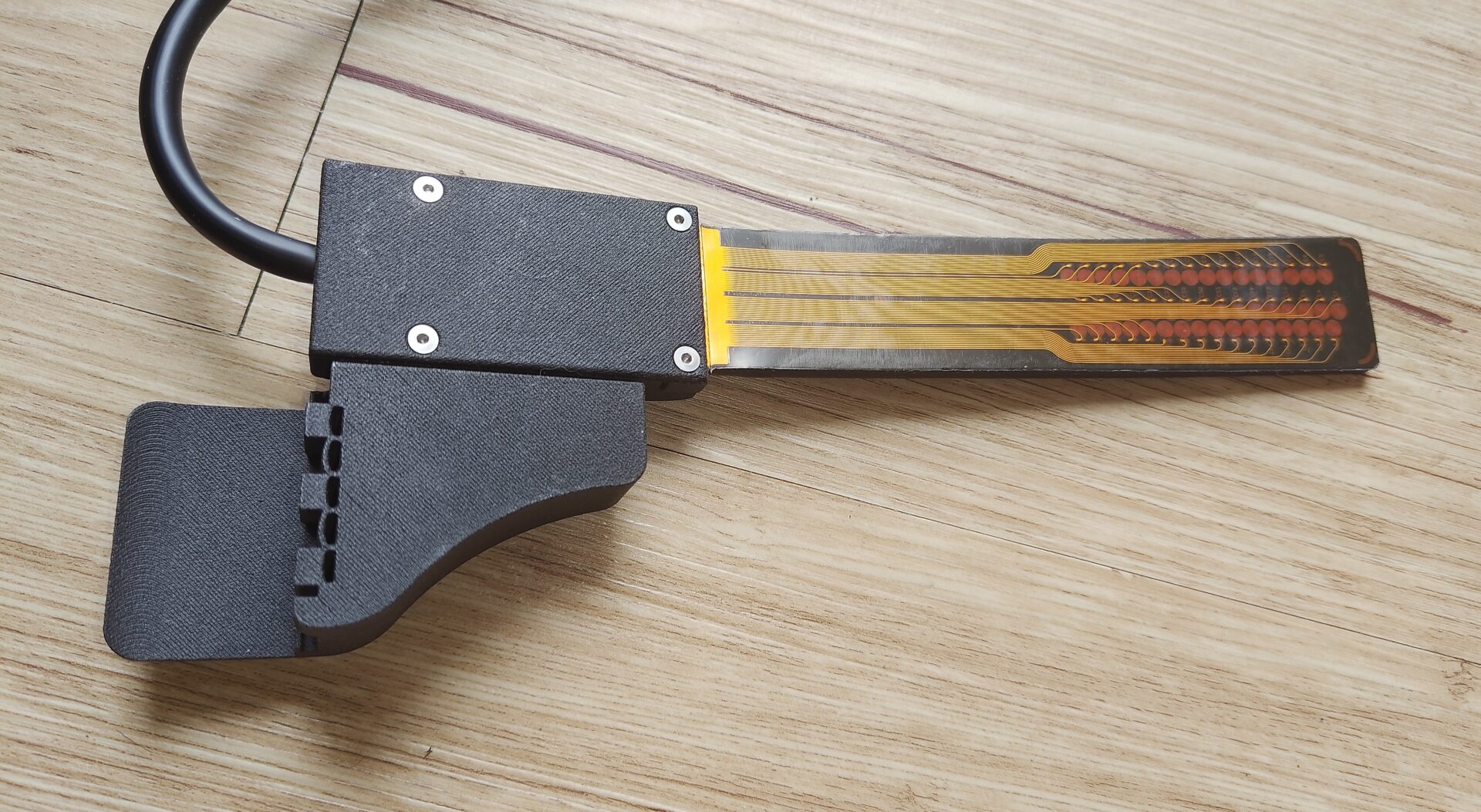

I-Flex™ large ECA probe, 50 kHz, 3 m

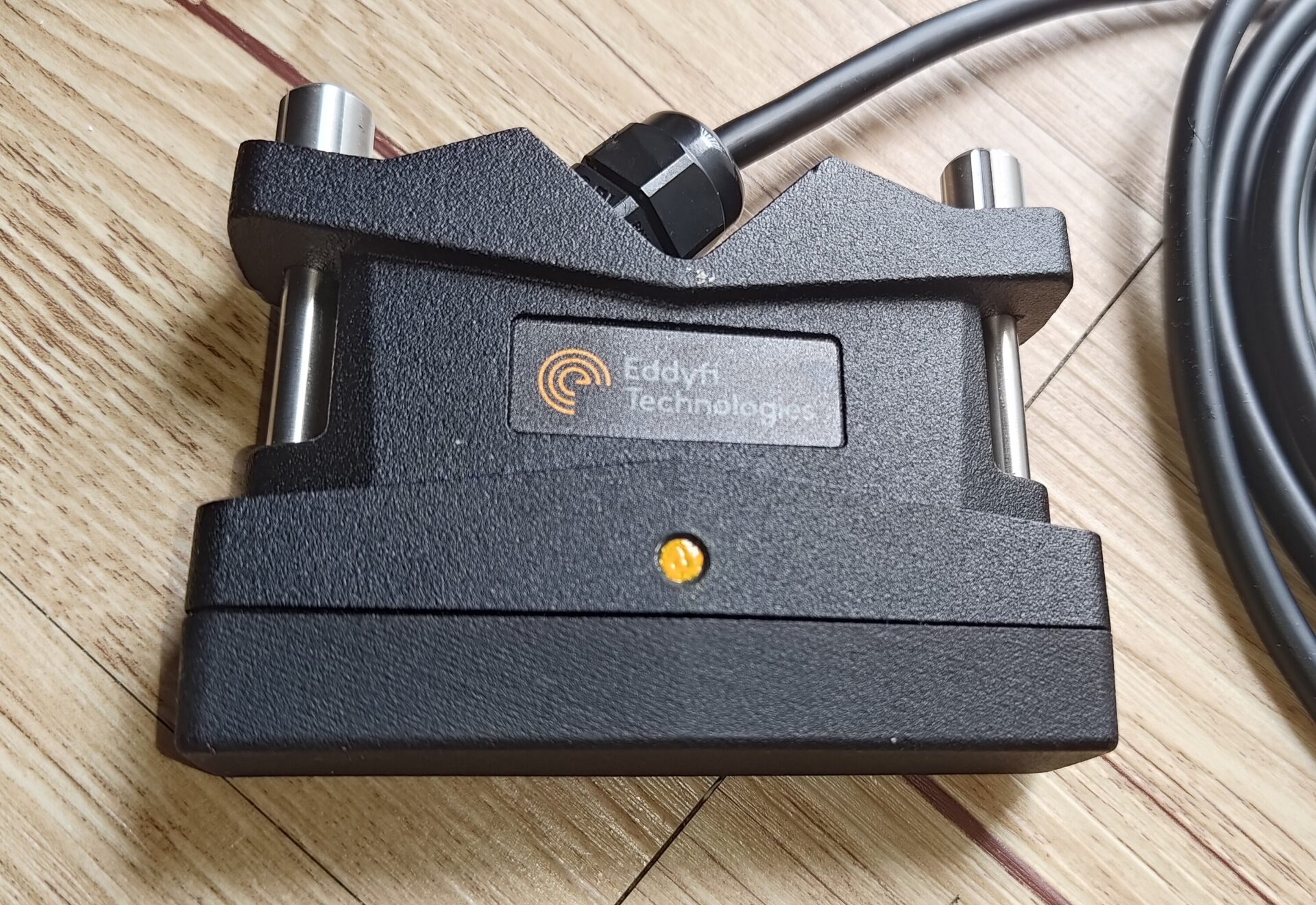

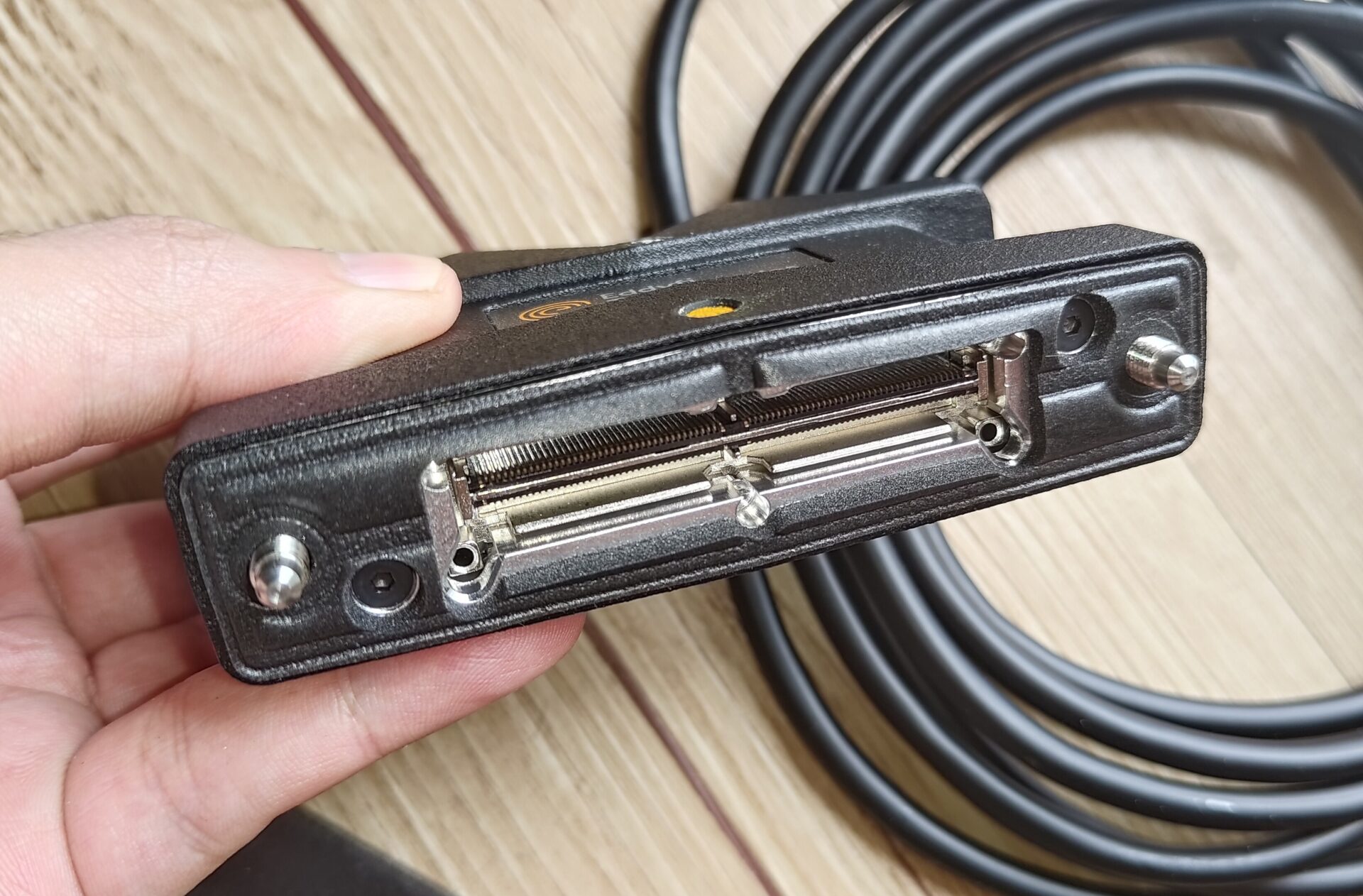

Standard eddy current array probe, low-frequency I-Flex™ large with 3 built-in topologies offering 32 to 128 channels, 79 mm (3.11 in.) coverage, 50 kHz central frequency, 48 coils. Comes with a 160-pin array connector and a 3 meters (9.8 ft) cable.
Specifications
• Nb. of channels 32, 59, 60 (I, LSD, SDD).
• Frequency range 10–150 kHz.
• Coverage 79 mm (3.11″).
• Cable length 3 m (9.8 ft).
• Central frequency 50 kHz.
• Coils diameter 5 mm (0.20″).
• Depth of penetration up to 4 mm (0.158″).
• Flexible or conformable available.
• Minimum bend radius 40 mm (1.57″).
• Minimum detectable crack (typical) 1.5 mm (0.06″).
• Nb. of channels required 32 or 64 channels.
• Nb. of coils 48.
• Technology is eddy current array.
• Topologies impedance, long single driver, short double driver.
The condition is brand new open box (BNOB).
