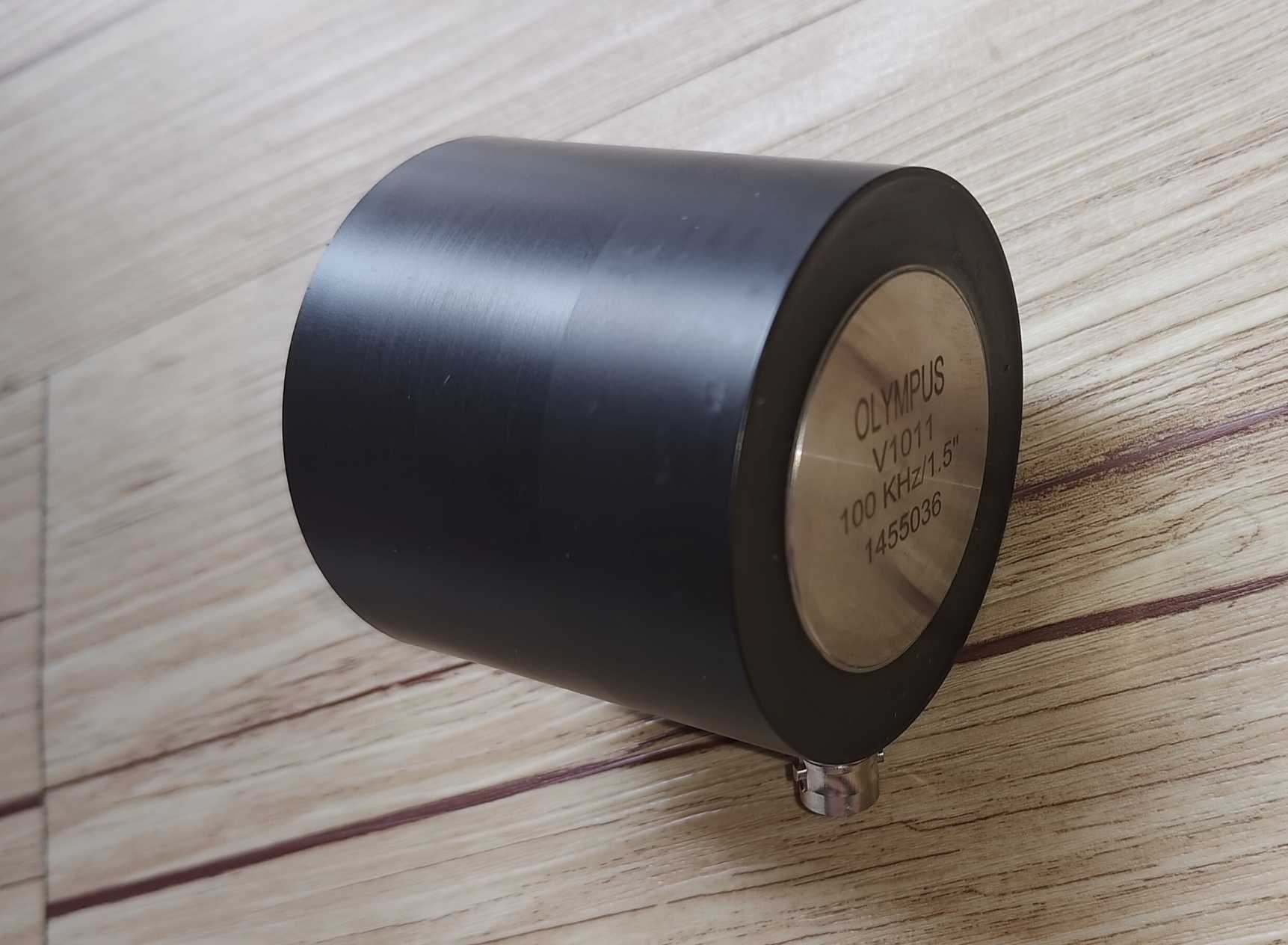

Contact Transducers
A contact transducer is a single element longitudinal wave transducer intended for use in direct contact with a test piece.
Specifications
• Frequency is 0.10 MHz / 100 kHz
• Nominal element size is 1.50″ or 38 mm
• Dimension A is 1.75″, dimension B is 2.50″, dimension C is 2.50″
Advantages

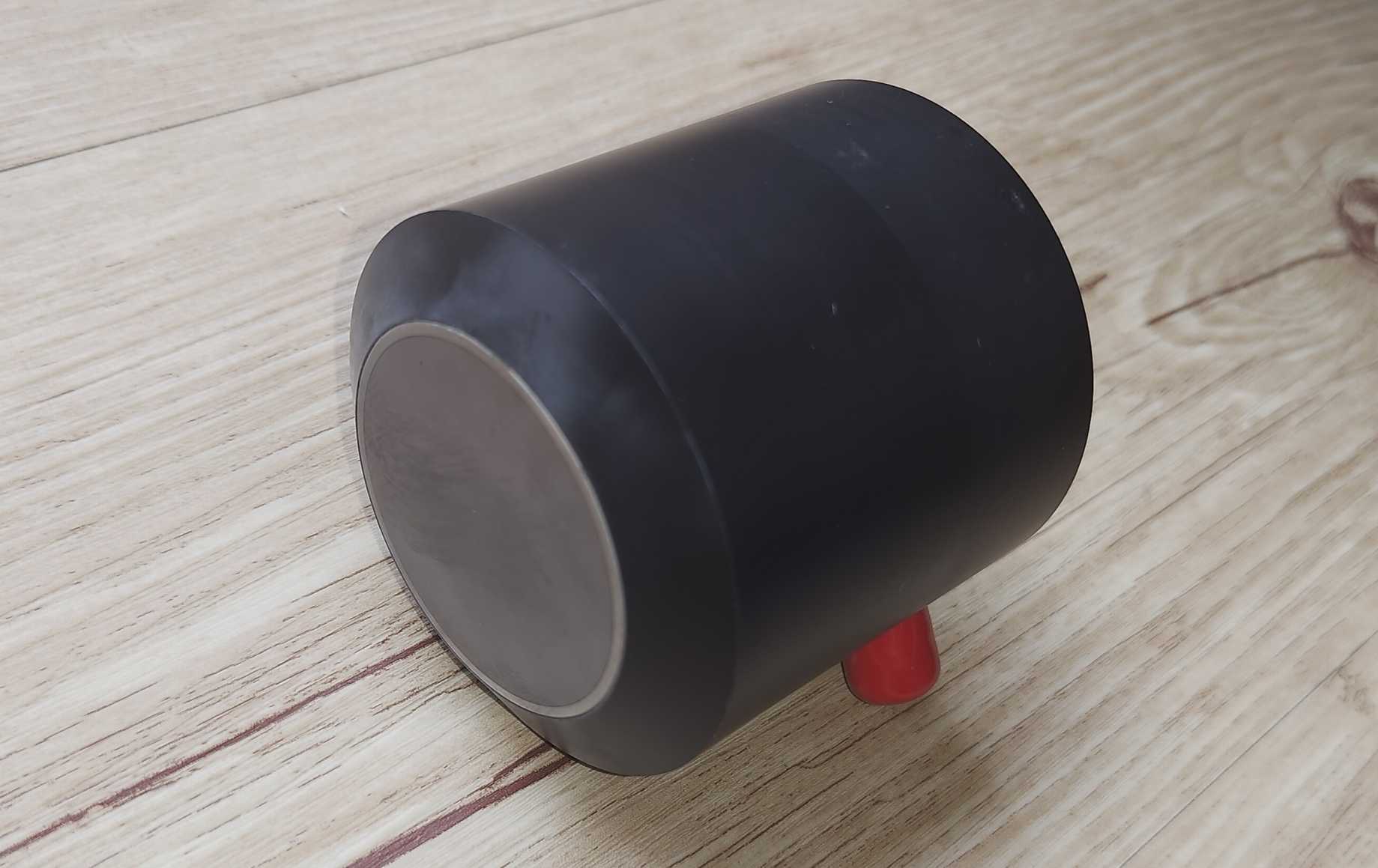

• Wear plate increases durability, fracture resistance, and wear resistance
• All styles are designed for use in rugged industrial environments
• Close acoustic impedance matching to most metals
• Can be used to test a wide variety of materials
Applications
• Straight beam flaw detection and thickness gaging
• Detection and sizing of delaminations
• Material characterization and sound velocity measurements
• Inspection of plates, billets, bars, forgings, castings, extrusions, and a wide variety of other metallic and nonmetallic components
• For continuous use on materials up to 122°F (50°C)
Standard Contact
• Comfort Fit sleeves designed to be easily held and to provide a steady grip while wearing gloves
• 303 stainless steel case
• Large element diameters for increased sound energy and greater coverage

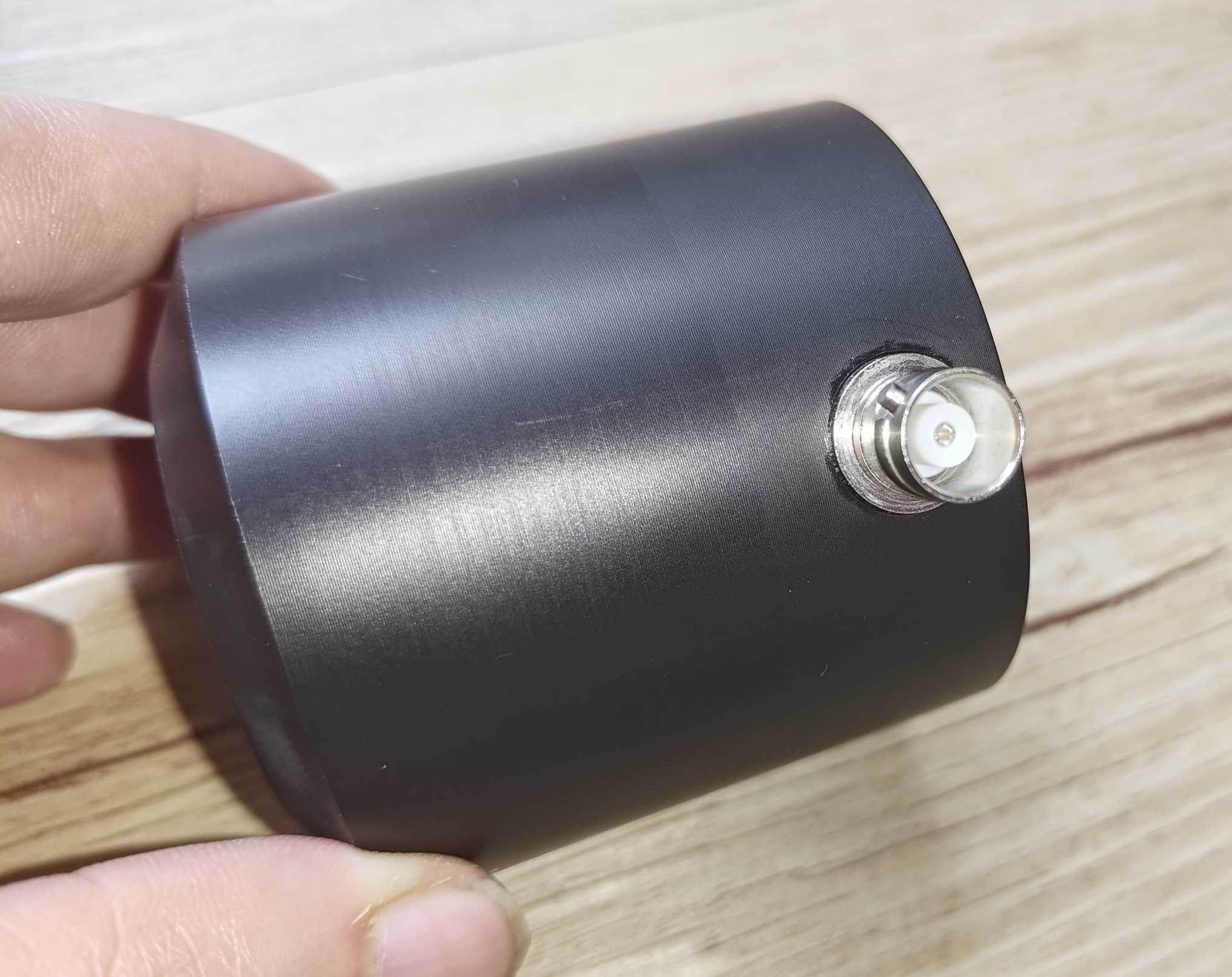

• Standard connector style is Right Angle BNC (RB)
The condition is brand new open box (BNOB)
