Mini Wheel Encoder
The Mini-Wheel™ encoder is used for the positioning and dimensioning of defects in the scan axis, synchronizing data acquisition with probe movement.
The Mini-Wheel encoder is waterproof and compatible with the HST-X04 scanner as well as our standard PA wedges. Use the included bracket kit to mount the encoder directly on the wedge or, for increased versatility and ease of use, mount the encoder on our Universal Holder.
Features
• Waterproof (IP68).
• Small dimensions.
• 12 steps/mm resolution.
• Rubber wheel offers increased traction on surface temperatures up to 150°C.
• Sealed bearing for long lasting smooth wheel rotation.
• Strain relief for increased cable reliability.
• Spring-loaded system for constant contact with the surface.
• Two M3 threaded holes on top of the casing for rigid attachment to custom assemblies.

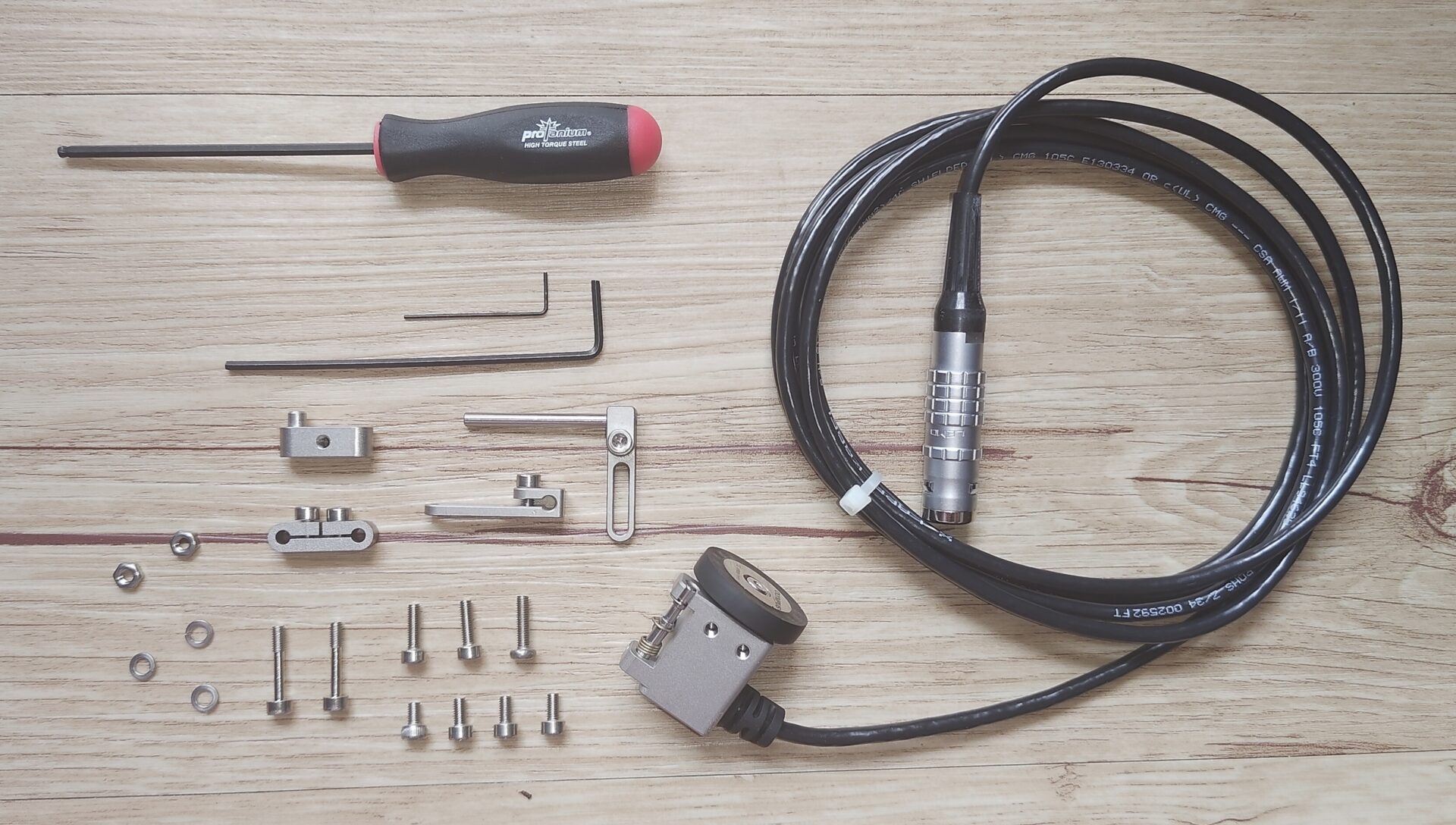

Standard Inclusions
• 1 encoder with stainless steel casing and rubber wheel.
• 1 mounting bracket kit.
• 1 hexagonal key screwdriver for bracket attachment.
The condition is brand new open box (BNOB).
