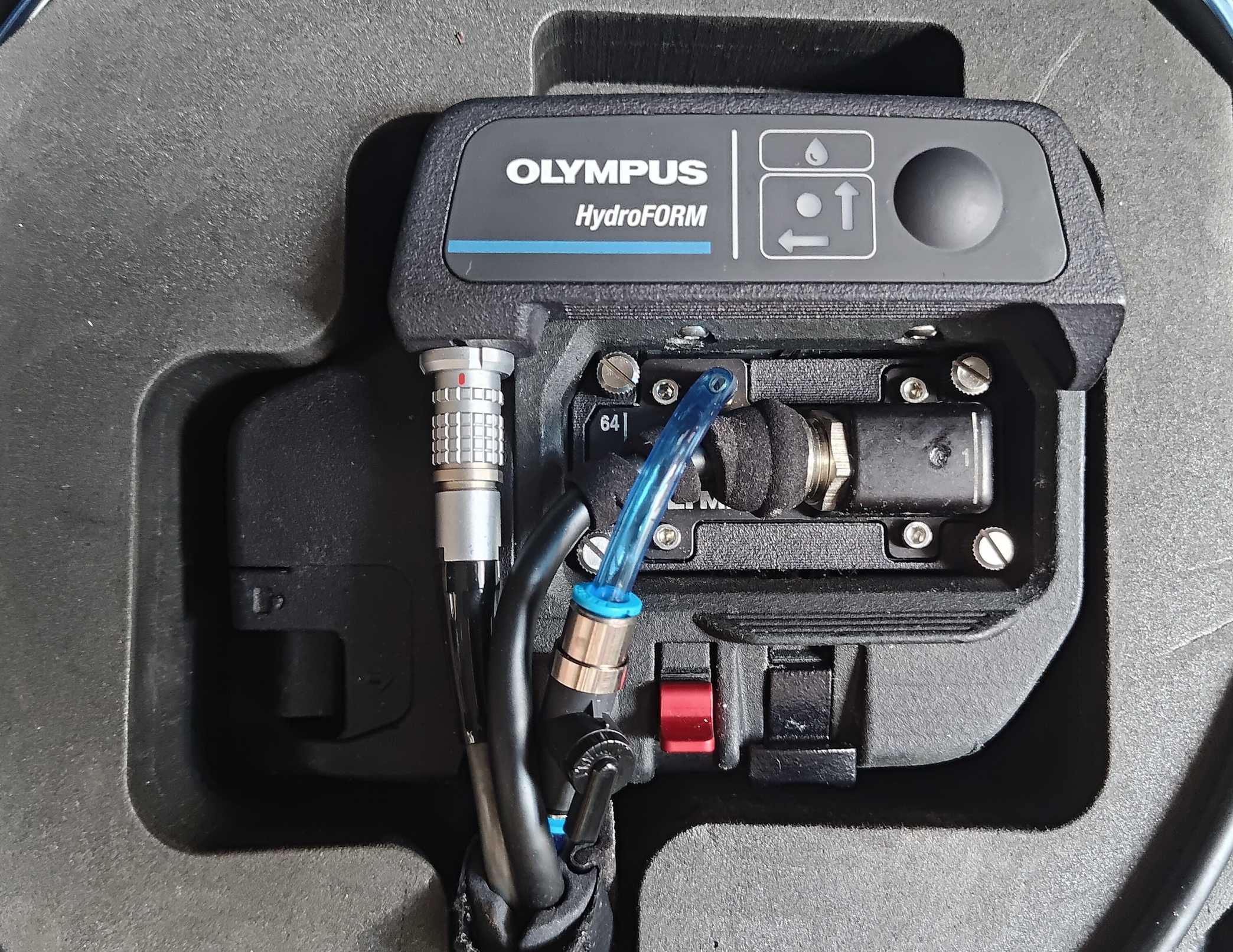

Olympus Semi-Automated Scanner
An easy-to-deploy 2-axis encoding phased array (PA) solution, the semiautomated HydroFORM™ scanner enables fast and reliable wall-thickness mapping and midwall damage detection by acquiring high-resolution data of large surfaces in minimal time. While the standard HydroFORM package comes equipped with the proven phased array linear probe and local immersion system, you can now choose for a dual array probe configuration. Both options allow for a resolution of up to 1 mm × 1mm.
To optimize the productivity of raster scanning, the HydroFORM system is equipped with several efficiency-boosting features:
• Integrated X and Y axis encoders,
• Smart indexing button,
• Index position and coupling indicators,
• Scan speed check,
• Efficient bubble management (with I8 linear probe),
• Easy-to-index magnetic wheels (with REX2 DLA probe),
• Braking system.
Easily adapting to curvatures 4 in. OD (101 mm) and greater, this PA solution facilitates a wide range of applications including:
• Monitoring wall-thickness reductions due to corrosion, abrasion, and erosion,
• Detecting midfall damage, such as hydrogen-induced blistering or manufacturing-induced lamination, and differentiating these anomalies from loss of wall thickness.
Specifications
• Phased array probe 7.5L64-I8,
• Maximum one-line scan coverage (width) 60 mm,
• Delay line medium is water,
• Delay line height 14 mm or 38 mm,
• Maximun inspection thickness (in steel) is 50 mm (14 mm delay line) and 150 mm (38 mm delay line),
• Typical near-surface resolution (1/8 in. FBH) 1.5 mm,
• Depth resolution 0.1 mm,
• OD inspection range 4 in. and greater,
• ID inspection range 10 in. and greater (16 in. with index encoder),
• Dimensions 16 cm × 12 cm × 8.5 cm with index encoder,

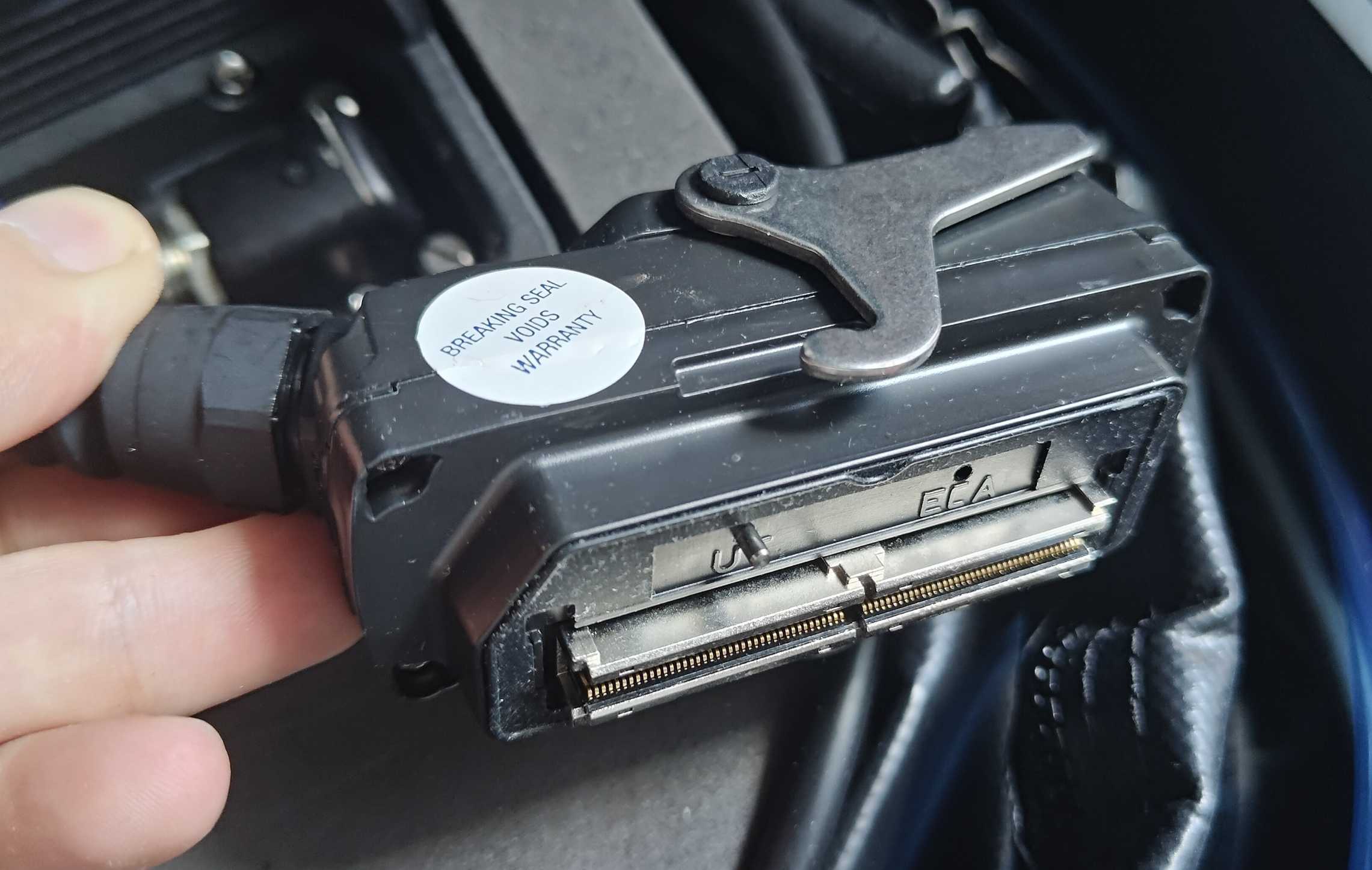

• Cable length 7.5 meters long,
• Scanner compatibility ChainSCANNER, SteerROVER, MapSCANNER, and MapROVER.

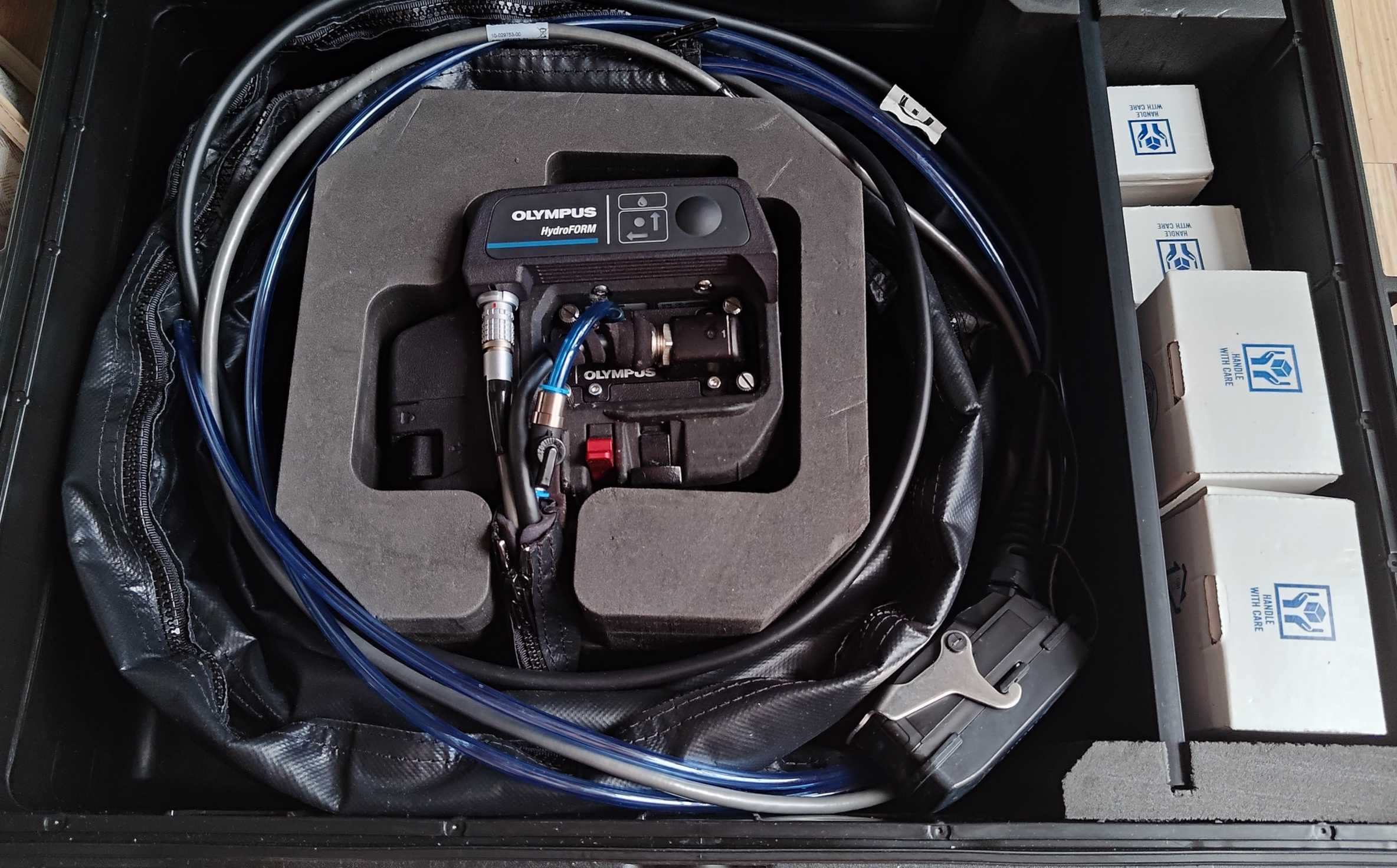

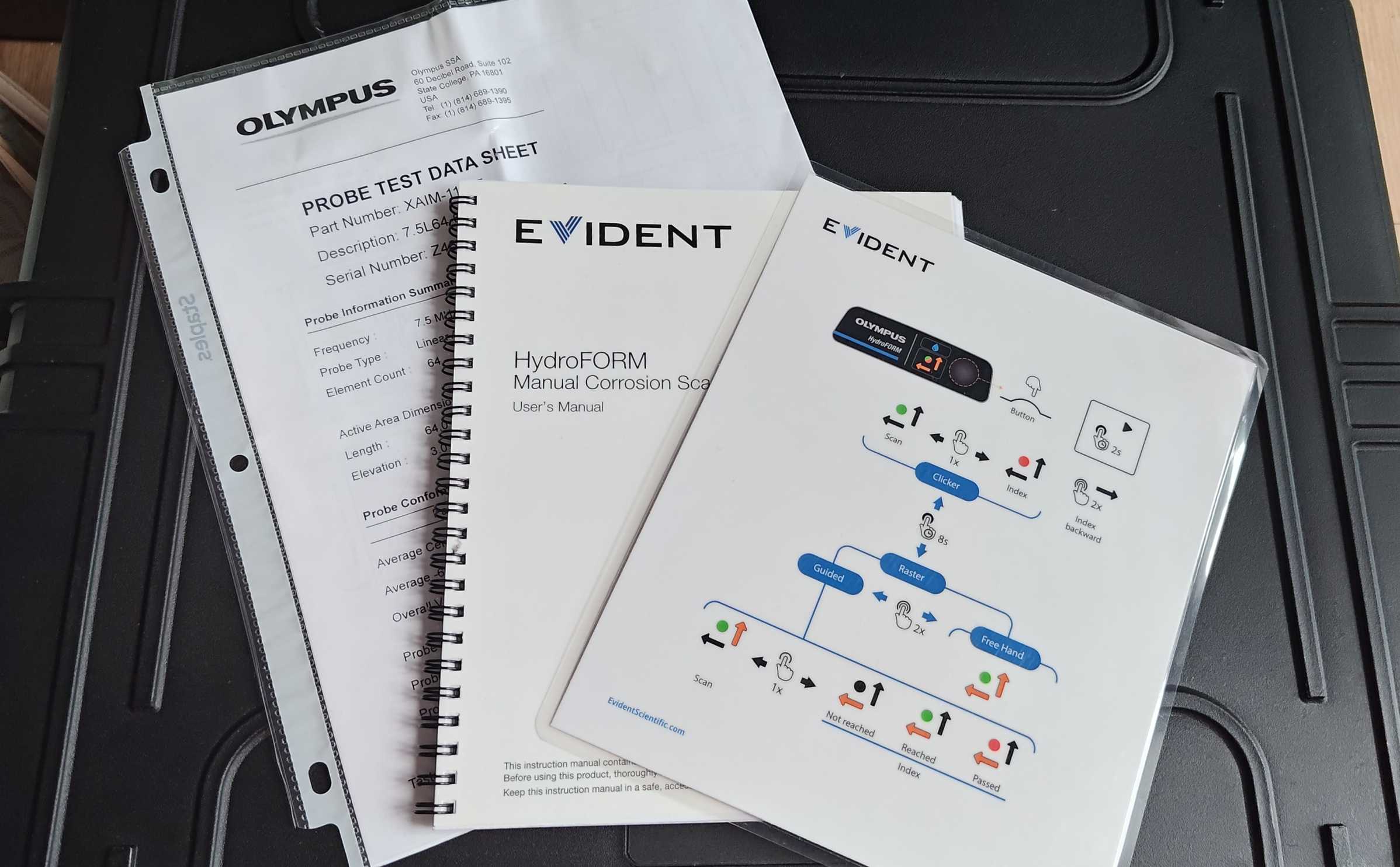

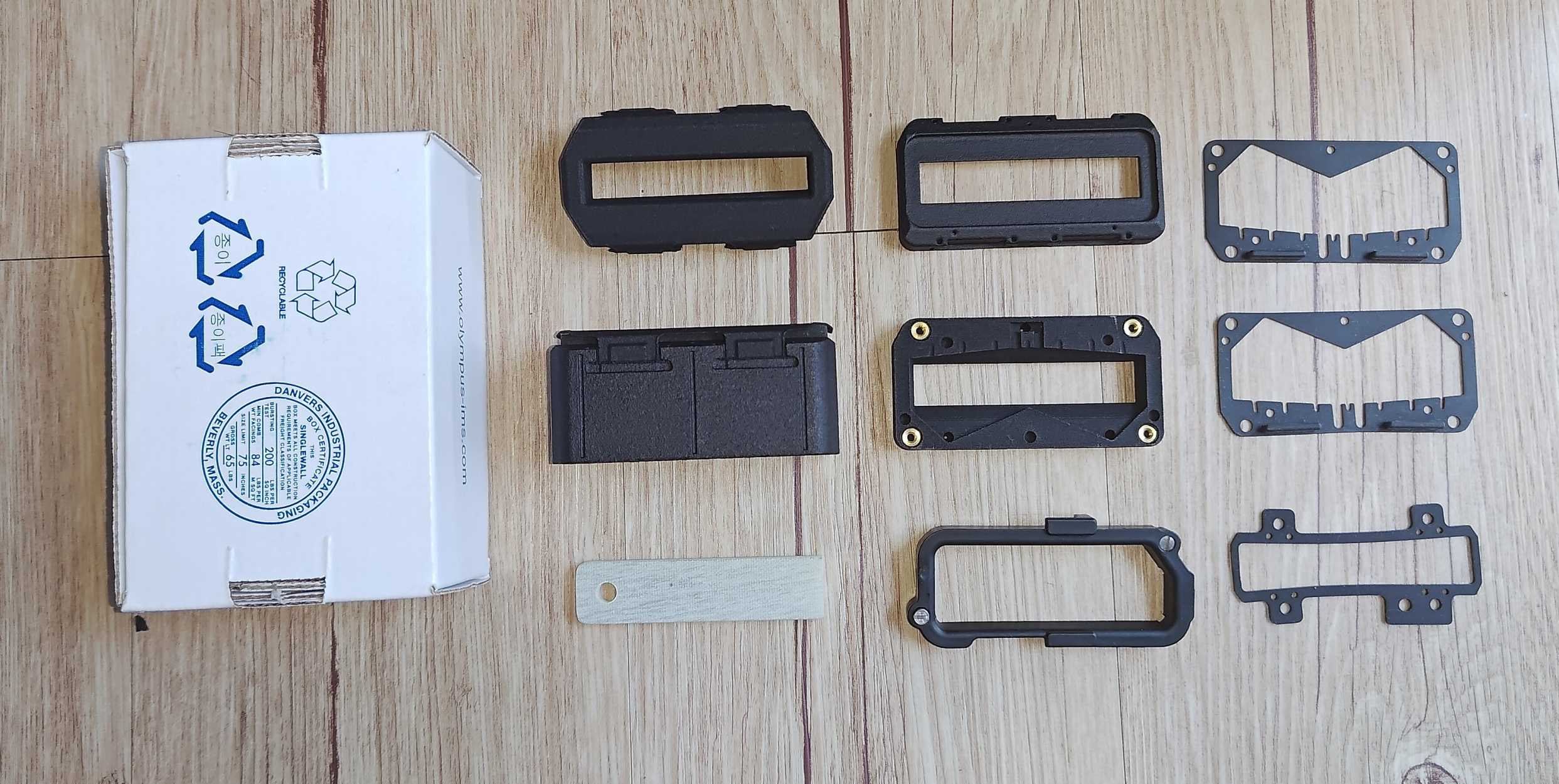

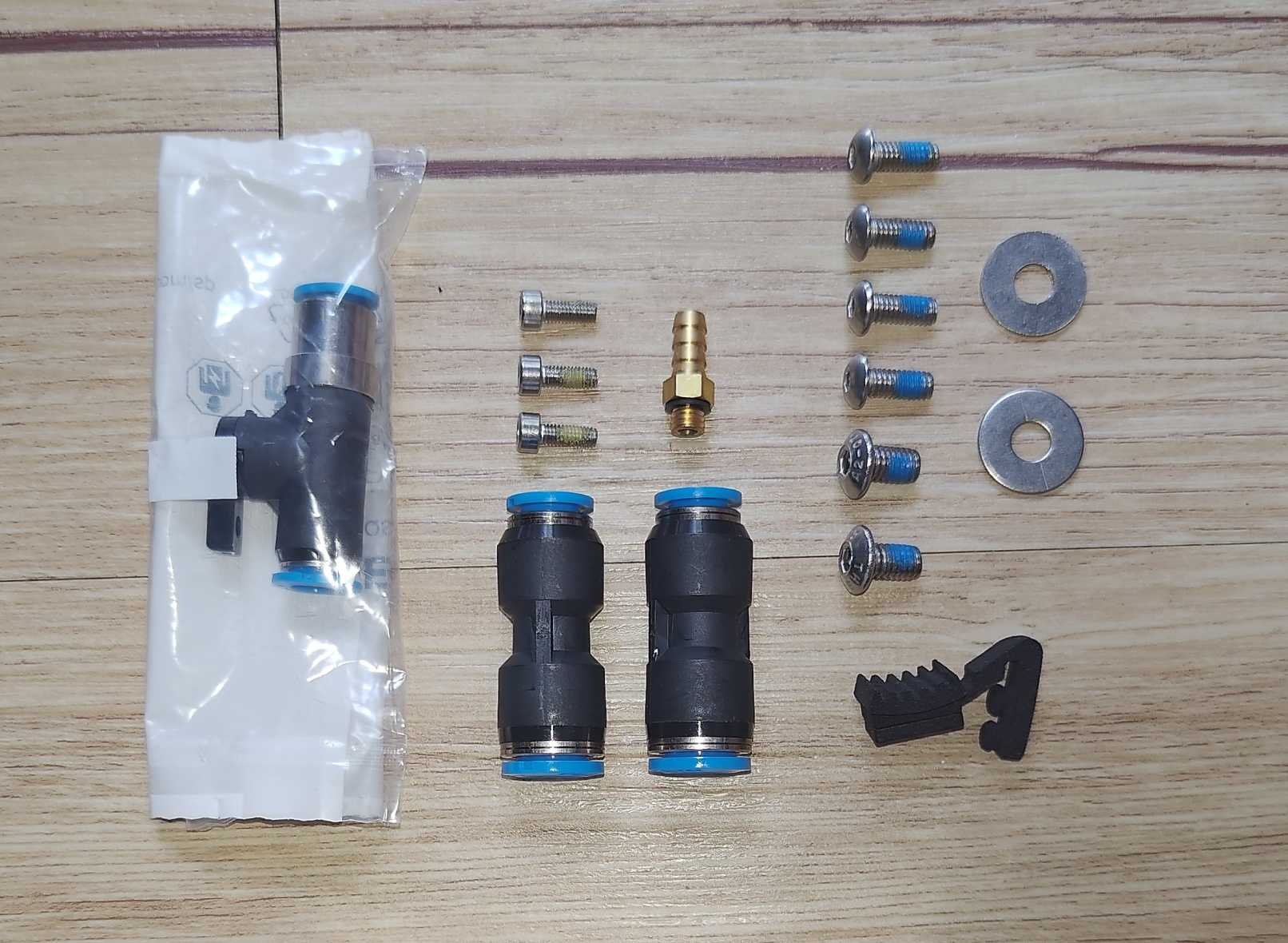

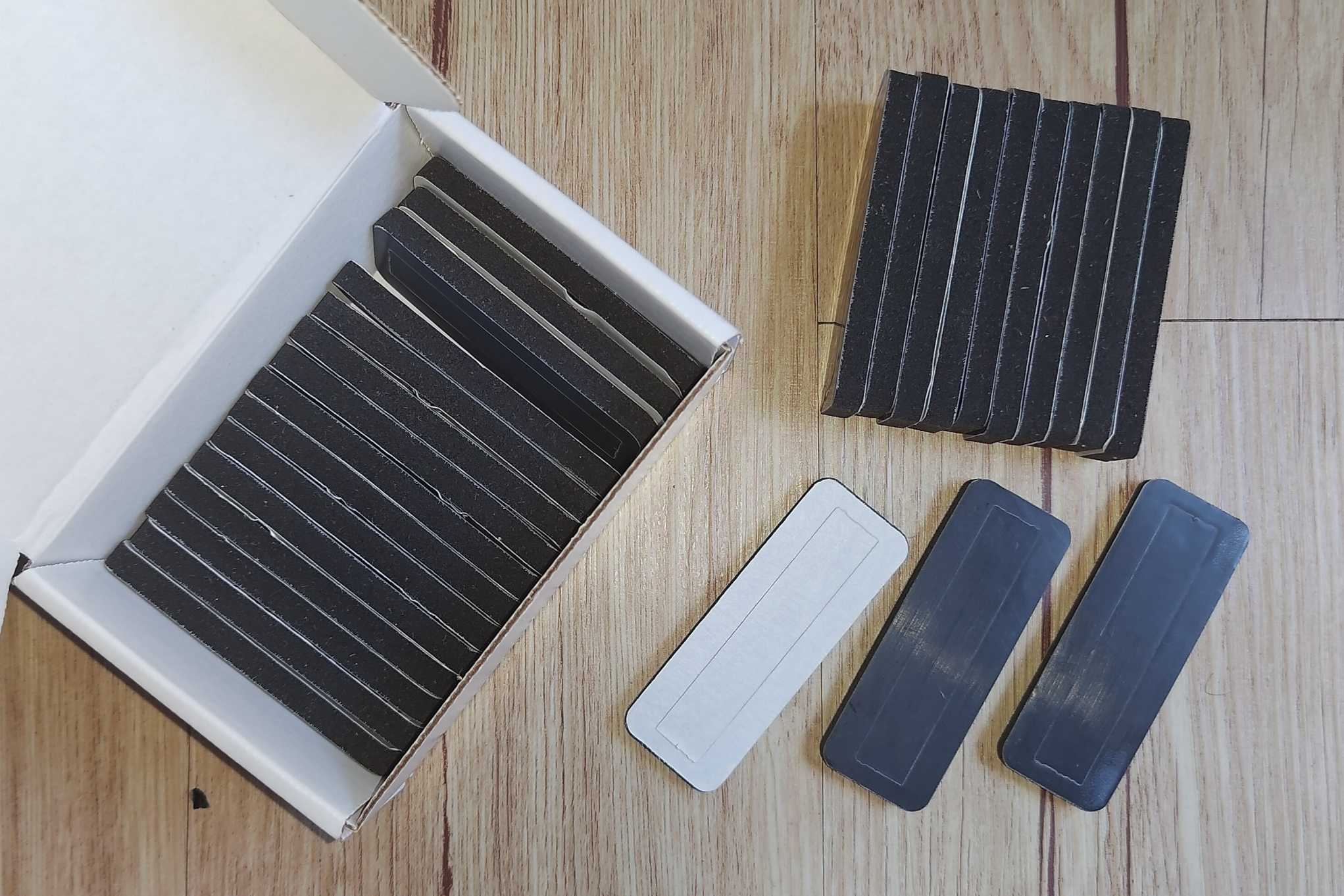

The condition is used for 2 – 3 times. All the accessories are complete.
