Deep Penetration Probes

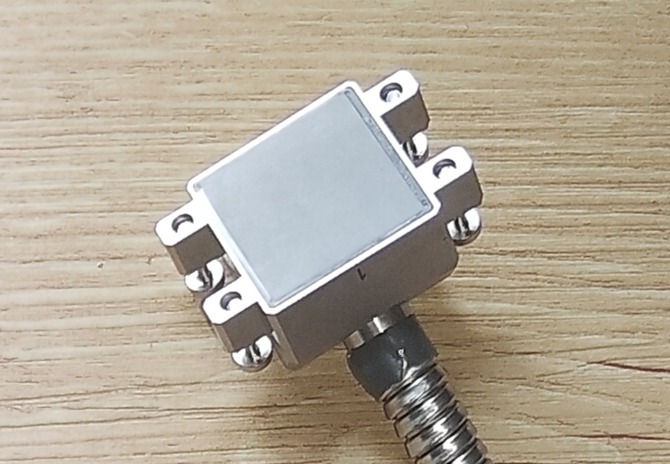

A phased array transducer is an ultrasonic testing transducer that contains a series of elements that can be pulsed in unison to direct sound waves in a specific direction. The advantages are acoustically matched to Rexolite and wide selection of wedges available to suit most angle beam applications, such as thick plates & welds, forgings, and noisy or granular material.
Specifications
• Frequency 2.25 MHz,
• Number of elements 32,
• Pitch 0.75 mm,
• Active aperture 24 mm,
• Elevation 24 mm,
• Dimension L – 29 mm or 1.14″, W – 43 mm or 1.69″, H – 24 mm or 0.94″
Advantages
• Acoustically matched to Rexolite.
• Wide selection of wedges available to suit most angle beam applications.

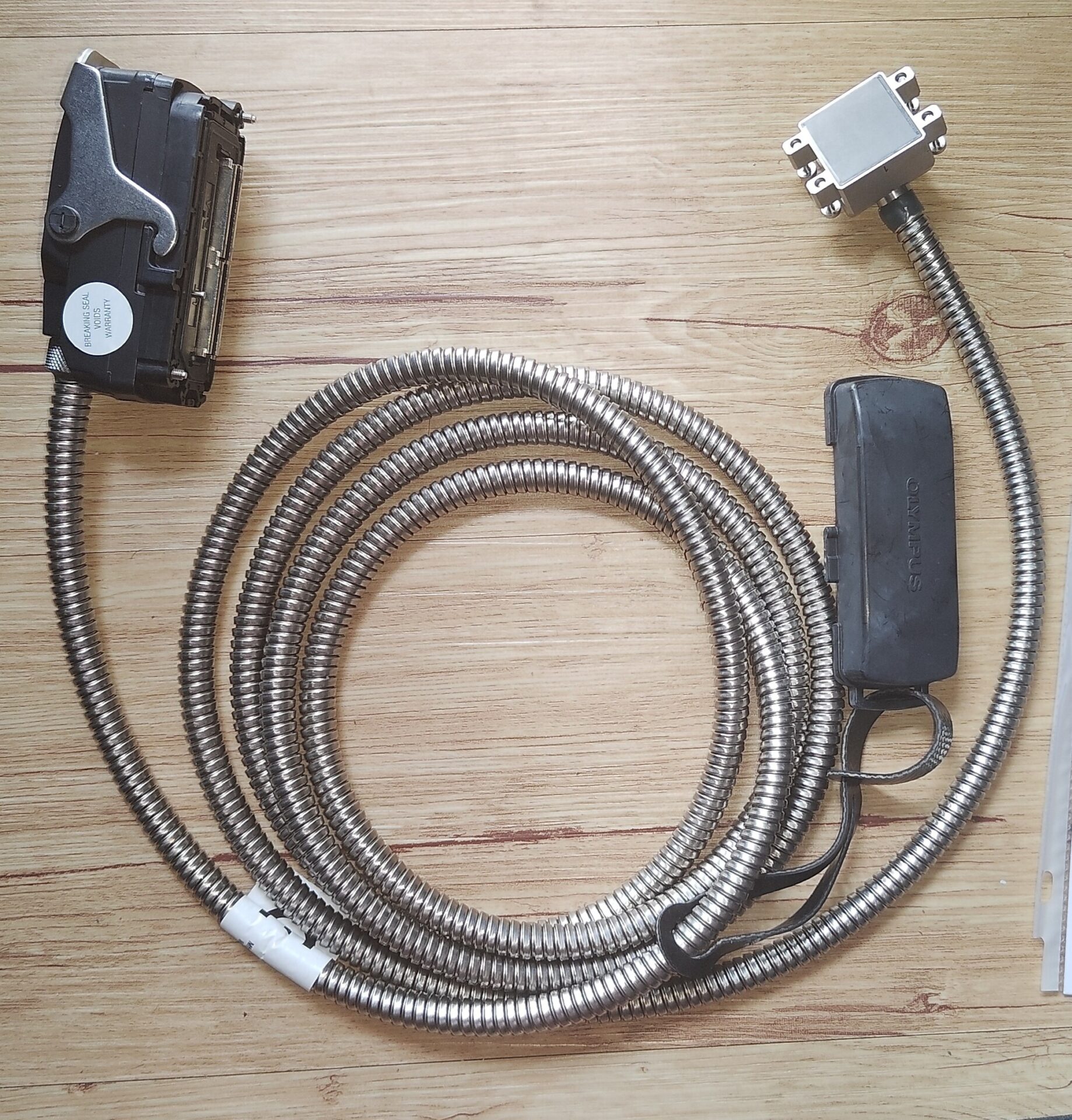

• Metal armor outer for mechanical protection against cuts, nicks, wear, and harsh environments.
• Metal armor outer for mechanical protection against cuts, nicks, wear, and harsh environments.
Applications
• Thick plates and welds.
• Forgings.
• Noisy or granular material.

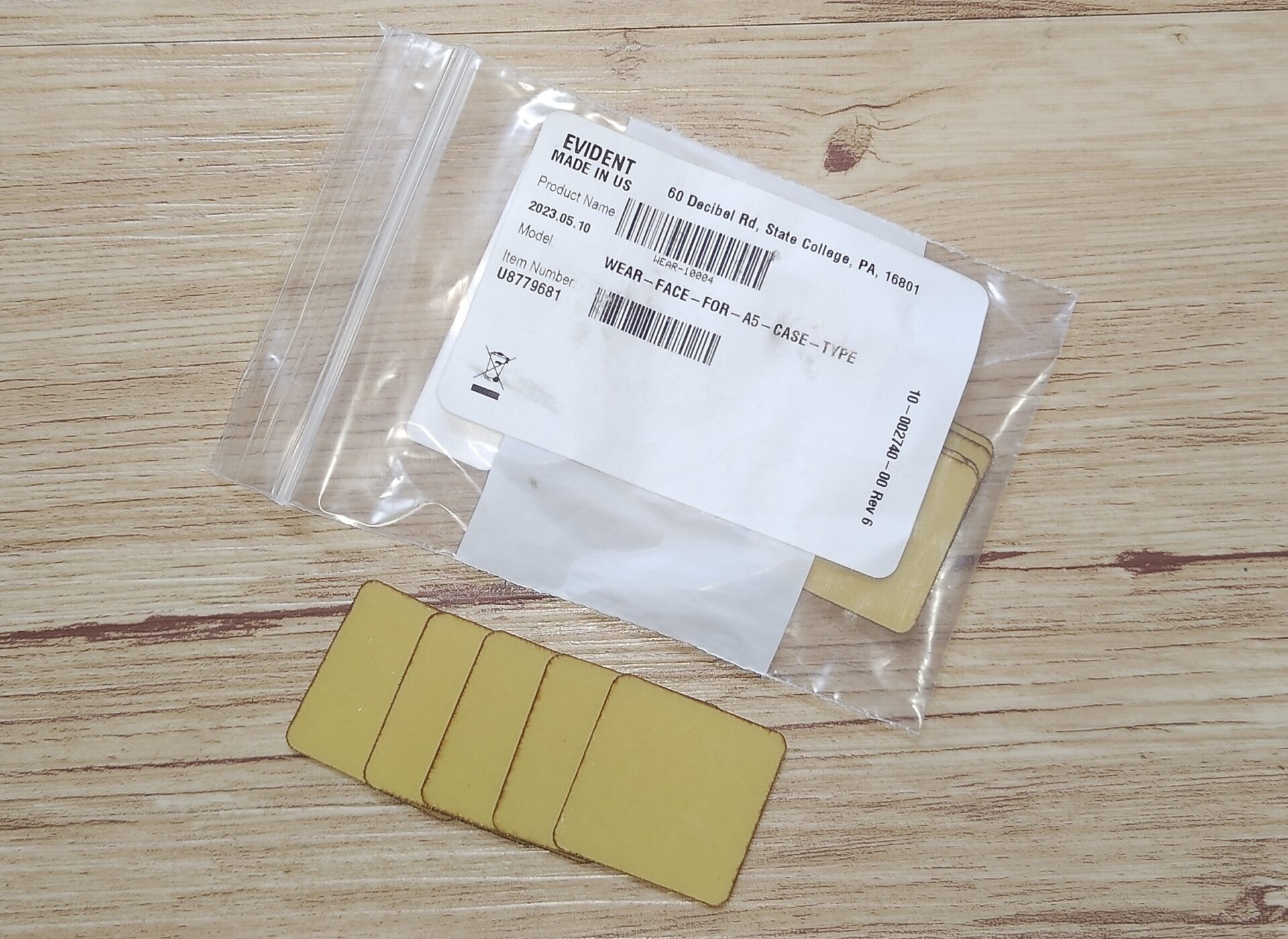

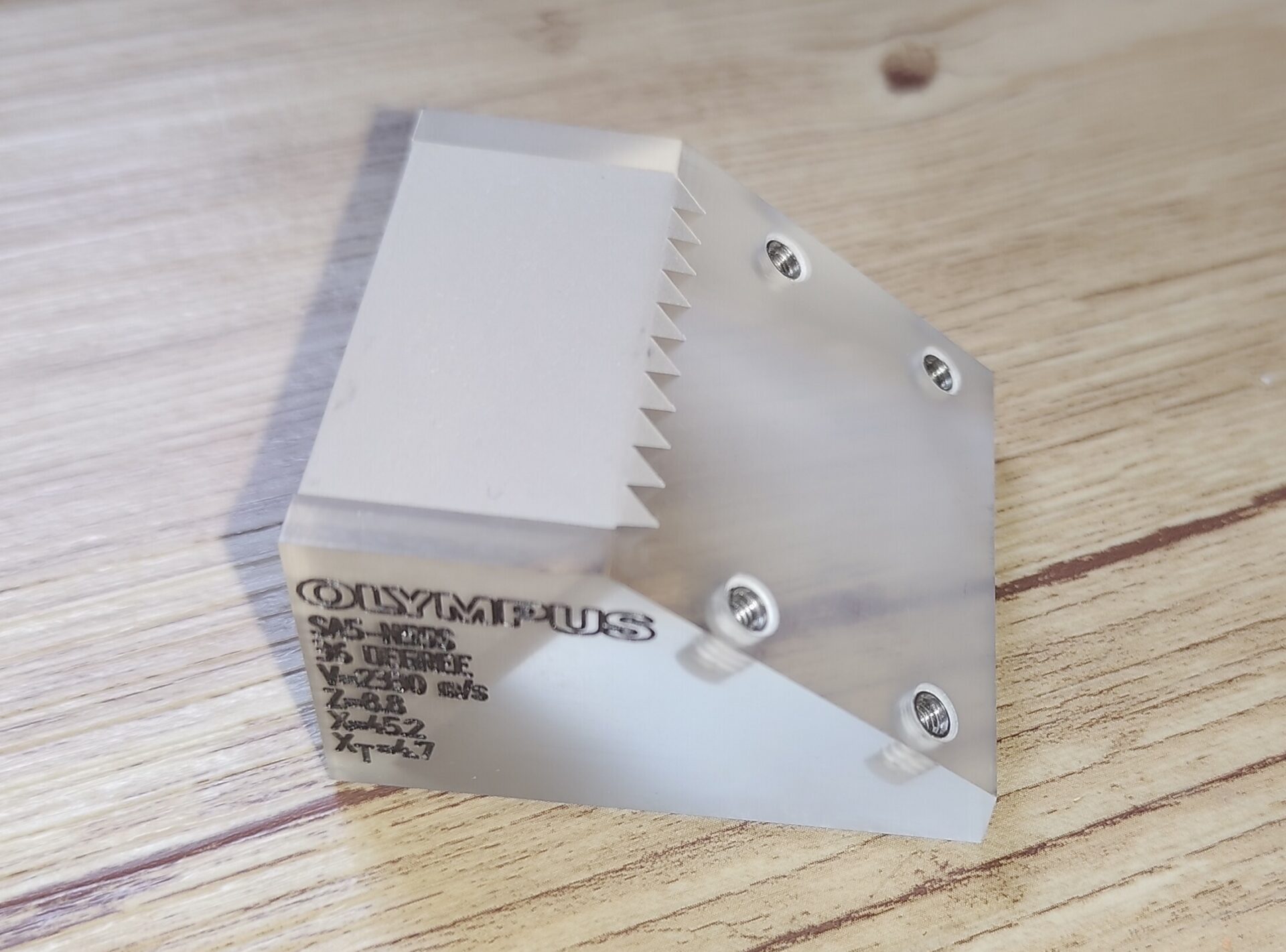

BONUS A WEDGE AND A PACK OF CONTACT WEAR.
The condition is brand new open box (BNOB).
